Vision®, Vision Junior®

Standing frame with power lift

///Standing frame with power lift Vision®
Standing frame with power lift Vision® 2017-11-02T11:04:32+00:00

Project Description

The standing frame Vision®  enables you having an active part in your surroundings, taking actively part in prophylactic acts and the therapy of pathological patterns, also to ensure the present quality of life.

Standing frame with power lift Vision®

Standing frame with power lift Vision®

Vision offers an entry at almost floor level and makes rising from a wheelchair easier. The user can stand up without any effort of his own.

VISION is fitted, as standard, with 4 safety wheels, for comfortable change of location.

Easier, guided standing for greater therapeutic success.

Standing frame with power lift Vision® Junior and wireless remote control

Standing frame with power lift Vision® Junior and wireless remote control

Indications:

  • Cerebral paresis
  • Paraplegia
  • Quadriplegia
  • Multiple sclerosis
  • And others
Quality with safety

Quality with safety

Scope of delivery:

  • Wireless remote control
  • Easy to use height adjustment of the therapy table by means of gas springs
  • Depth and tilt adjustable therapy table
  • Adjustable depth, height, breadth and angular position of knee supports
  • Width and depth adjustable heel supports
  • 4 safety wheels

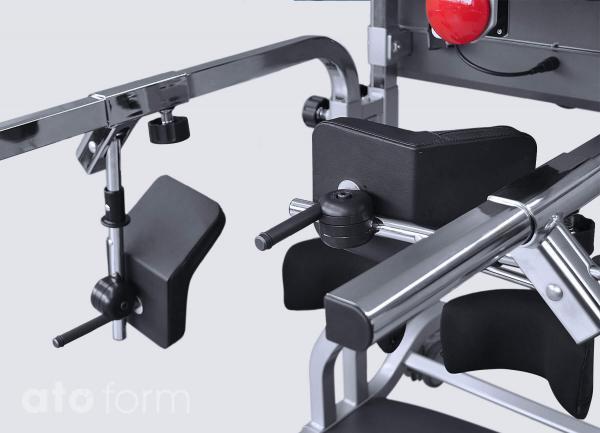

3-D adjustable knee supports

3-D adjustable knee supports

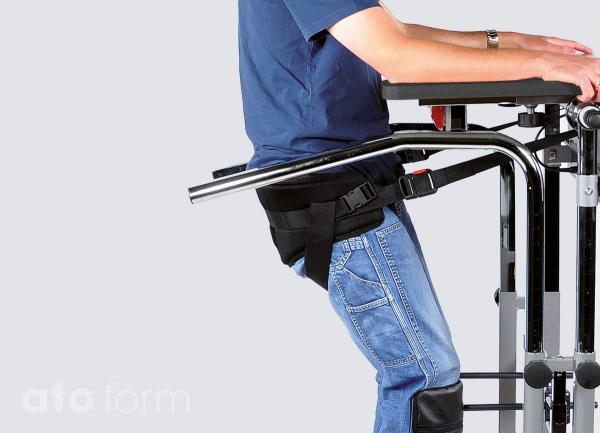

Raise up using a pressure relieving stand up belt

Raise up using a pressure relieving stand up belt

3-D adjustable pelvic support (accessory)

3-D adjustable pelvic support (accessory)

Raise up using a pressure relieving stand up belt

Raise up using a pressure relieving stand up belt

3-D adjustable pelvic support (accessory)

3-D adjustable pelvic support (accessory)

Technical details

Standing frame Vision Vision Junior
Article number VS-1000 VSJ-1000
Footplate ↔ Table cm 87.0 – 100.0 93.0 – 120.0
Footplate ↔ Knee support cm 30.0 – 50.0 38.0 – 56.0
Height of handrails (from footplate) cm 69.0 – 90.0 80.0 – 104.0
Floor ↔ upper edge footplate cm 8.0 8.0
Chassic length
cm 93.0 103.0
Overall length
cm 99.0 110.0
Outer frame width cm 68.0 78.8
Inner frame width cm 51.5 61.5
Therapy table (breath x width) cm 65.0 x 60.0 75.0 x 60.0
Depth adjustment table cm 16.0 16.0
Tilt adjustment table Degrees +/- 15° +/- 15°
Product weight kg 58.0 62.0
Maximum capacity kg 150.0 150.0
Power supply V 230 230
IP Protection 21 21
